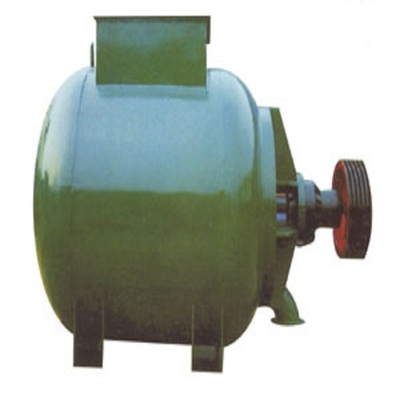

Horizontal hydrapulper is aspecial equipment for broking the waste paper and pulp board to pieces .
It’s work principle is that to gethelp from the machinery action of the wheel’s swirl and the size degradationaction to defiber the pulp.
It has many advantages, such ashigh process capacity, short process time, easy operation and so on.
As the main shaft is horizontallyinstalled, the heavy impurities deposit onto the bottom of tank to lighten thewear of the rotor and screen plate.It is especially suitable forpulping the non-selected and heavy-impurities’ material.
Item \Type | 1 m3 | 2 m3 | 5 m3 | 10 m3 |
Nominal volume(m3) | 1 | 2 | 5 | 10 |
Production capacity(t/d) | 10-15 | 20-30 | 30-45 | 40-70 |
Power (kw) | 22 | 45 | 75 | 90 |
Rotor diameter(mm) | 450 | 650 | 720 | 800 |
Pulp consistency(%) | 3-5% |
